Fully integrated
trimble module

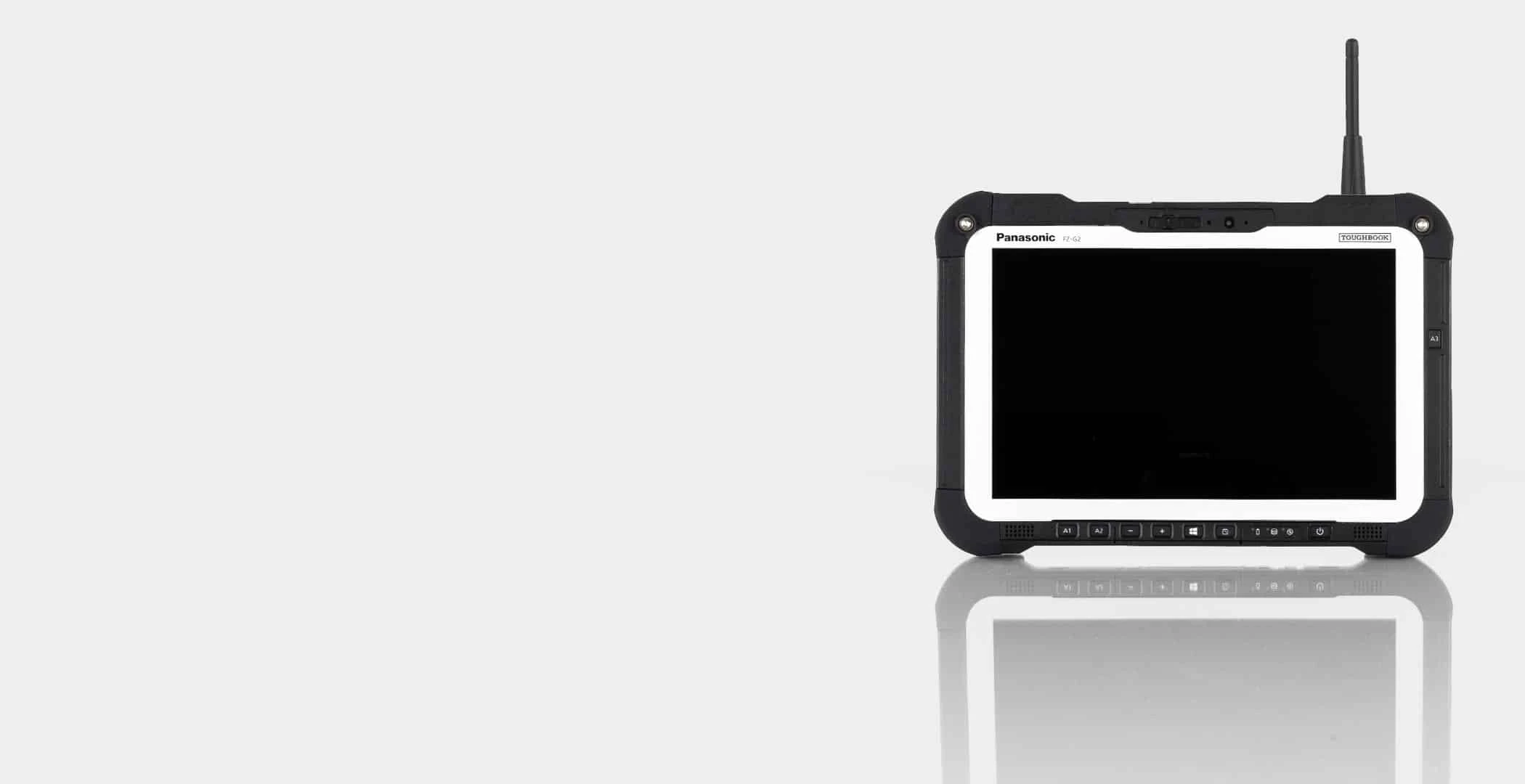

The TRIMBLE module is installed directly on the
TOUGHBOOK G2 and enables a direct wireless
connection between the TRIMBLE total station
and the tablet - even at very high measuring
distances. This simplifies the daily workflow,
for GIS geo-surveying, for example.

PWA_G2_TF G2_TRIMBLE RADIO
G2 PWA TRIMBLE RADIO G2 PWA TRIMBLE RADIO

Fact

Results from range tests:

  • 500m facing the total station
  • 400m away from the total station
  • Tested tightness by PWA rain simulator

Fall protection through:

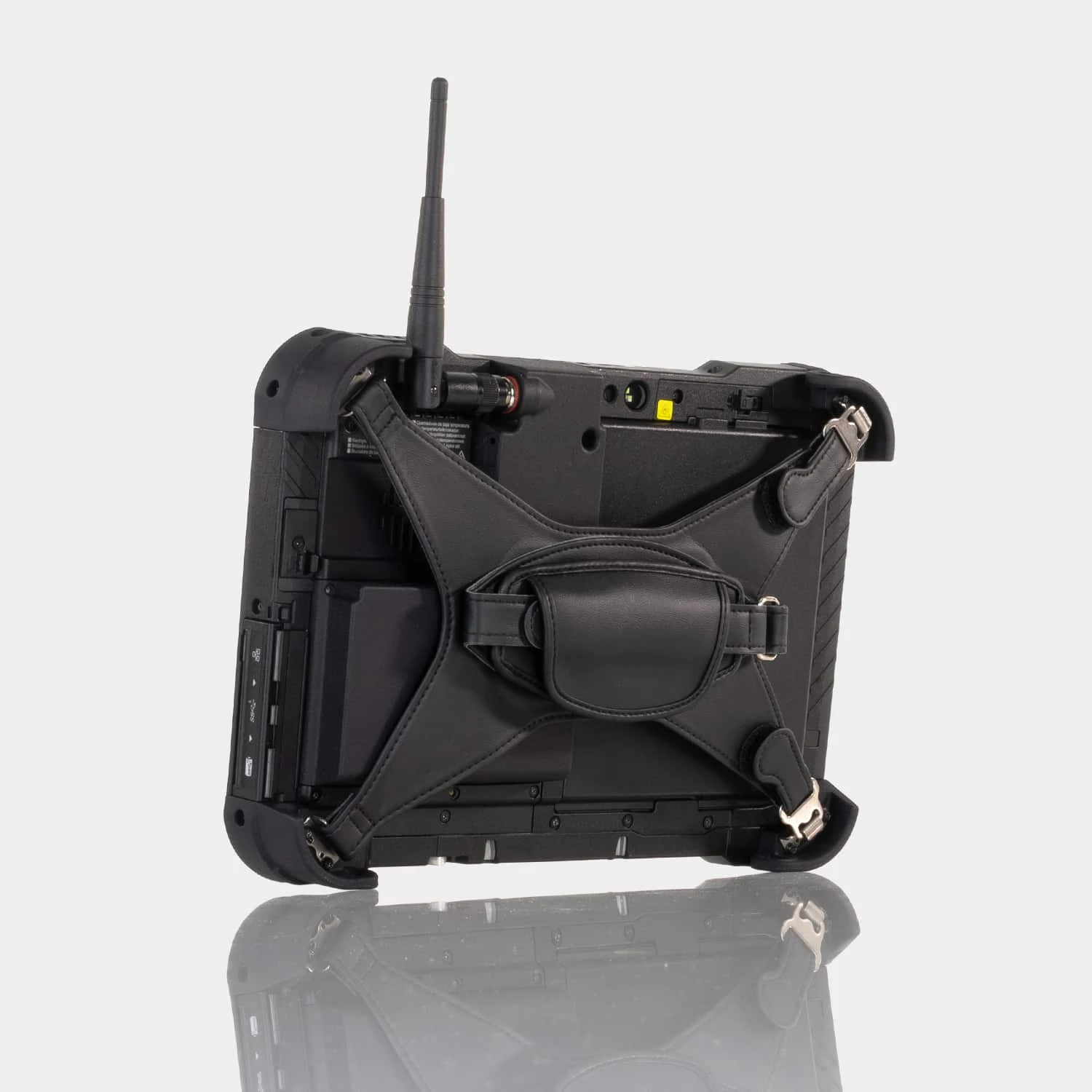

  • GIANT CORNER GUARDS and hand strap

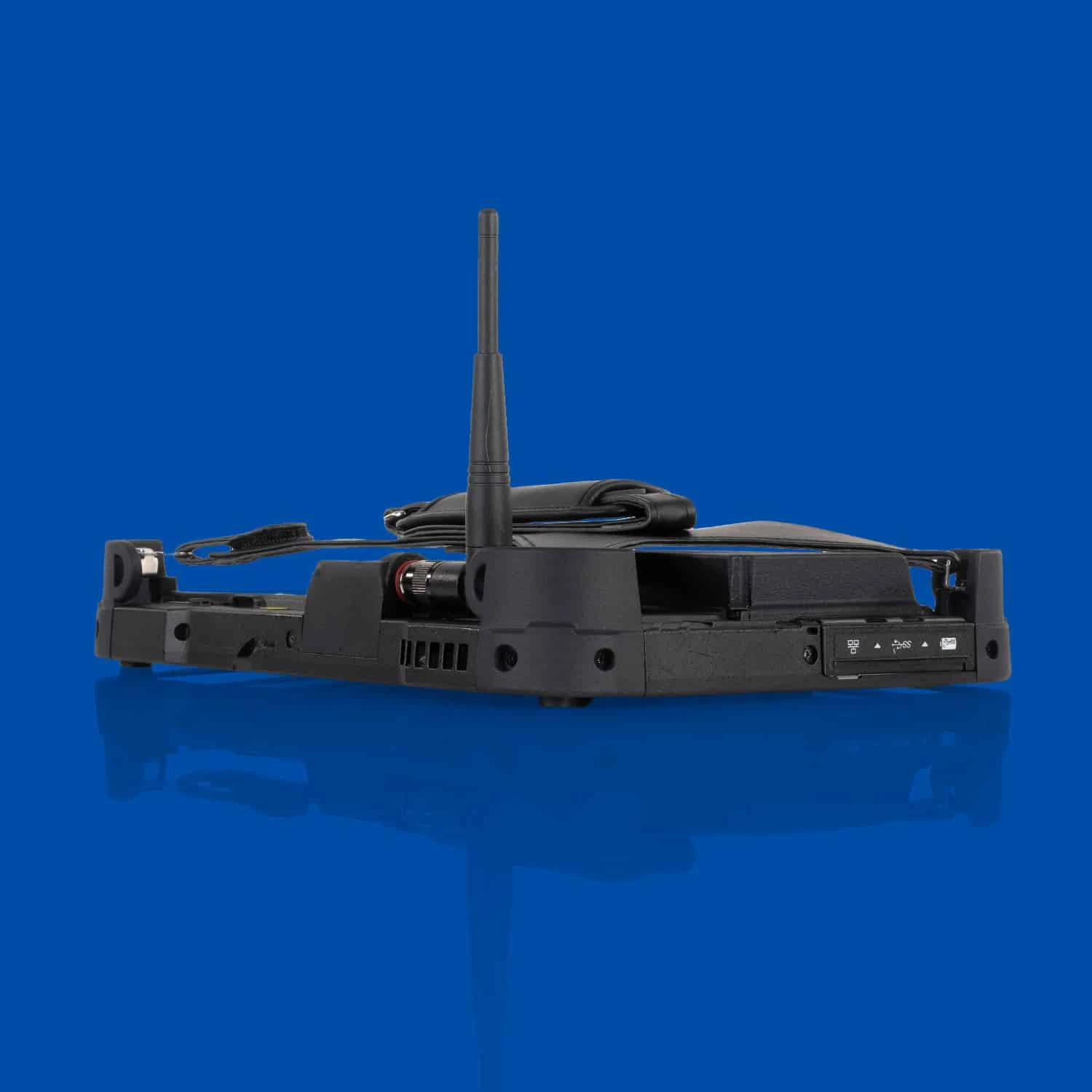

  • Antenna plug is protected due to rear positioning on the TOUGHBOOK G2. The antenna protrudes if required.
  • Fully integrated via top optional USB interface

Performance

Details of the built-in electronics:

  • Compatible with TRIMBLE total station
  • Frequency: 2.4 – 2.483 GHz
  • Power level: +10 / +18 dBm
  • Consumption: 40 mA @ 3.3 V
  • Aerial terminal: RP-TNC
G2 PWA TRIMBLE RADIO G2 PWA TRIMBLE RADIO
